Description

Gaslift – available in 3 sizes:

140mm – fits most standard office chairs; 450mm at its lowest point & 540mm at its highest

200mm – an intermediate height gaslift when a full height option isn’t required; 530mm at its lowest and 730mm at its highest

260mm – the commonly used gaslift for laboratory work and work seated at high benches (instructions on how to remove and install are available); 610mm at its lowest point & 870 at its highest

How to install the gas lift cylinder on your own?
Put the chair on a old towel or rag, then tip the chair onto its side.  Spray WD40 into the areas the gaslift inserts into the chair (under the seat pan and into the base) this will help loosen the gaslift, use the rubber mallet to tap and remove the base of the chair away from the seat. (the castors may fall off, so please be careful where you are standing)
Use the pipe wrench to clamp tightly onto the top of the cylinder. Twist and then pull up in order to remove the cylinder.
Remove the cap off the new cylinder, (Loose coloured cap normally only supplied on the 260mm and 265mm). Insert the bottom of the cylinder into the center of the chair base. Carefully lift both the chair base and the chair cylinder into the chair mechanism, add back any castors that have come loose, sit back on your chair and test.

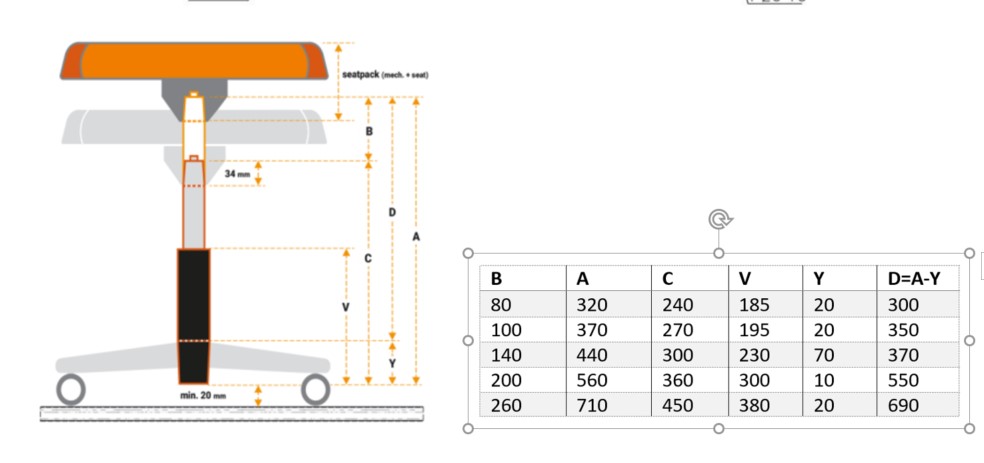

This may help work out which one you need to purchase – our gaslifts are Class 4, Heavy-duty, rated up to 150kg

2-Gass-ALD140 – fits most standard office chairs

Overall length when compressed (at its shortest) 295mm

Gas lift diameter (bottom thicker section) 50mm

Extension: 140mm

Colour: Black

2-Gass-200mm

This is a higher gaslift and is not suitable for standard office chairs

Gas lift diameter (bottom thicker section) 50mm

Overall length when compressed (at its shortest) 365mm

Maximum extension: about 200mm

Colour: Black

2-GASS-260mm

Our highest gaslift suitable for high benches

Overall length when compressed (at its shortest) 450mm

Extension: 260mm

Colour: Black

Our gaslifts are universal – the outer tube is ∅50 diameter and has an inner tube of ∅28 diameter. All our gaslifts are Class 4 rated and supports a weight limit of 150kg, if you have a tall base you may need a gas cylinder with a drop through/tapered end, our 200 and 260mm gaslifts come with a red cap, please remove this prior to installation.

*chair height measurements are based on using our components on a Damba Chair, height will vary dependent on the chair you have, the base, castors and seat thickness.
